Burley Django 2006 Technical specs and features
Brand | Burley |
Model | Django |
First production | 2006 |
Bike category | Recumbent |
Bike sub-category | Recumbent |
Bike Pricing | Check price Here ==> |
Parts And Accessories | Burley Django Parts |
Available Sizes | - Sm/Md - Md/Lg |
Wheels And Breaking System
Bike front tire | Rear: 26 X 1.50 (inches) Kenda KwestFront: 20 X 1.50 (inches) Kenda Kwest |
Bike rear tire | Not Available |
Bike wheel size | Rear: 26 (inches) WheelsFront: 20 (inches) |
Brakeset type | Avid FR-5 LeversAvid BB-5 Disc Front and Avid BB-5 Disc Rear Brakes |
Hubs for disc brakes | Rear: Shimano FH-M475 DiscFront: Shimano HB-M475 Disc |
Rims manufacturer | 32-holeWeinmann Zac 19 |
Spoke nipples type | Brass Nipples |
Spoke wheel | 14ga. Straight GaugeDT Swiss Stainless Steel |
Frame and Body Specifications
Frame materials | SupaLite 4130 Chromoly |
Frame type | TIG-welded |
Handlebar construction | Burley OC Bar |
Handlebar extender | Not Available |
Handlebar stem details | Burley Design Megadjust |
Headset size | 1 1/8 (inches) Threadless Cane Creek STS |
Gearing Specs
Bicycle chain | KMC Z9200 |
Bottom bracket shell width | Not Available |
Bottom bracket type | Truvativ GXP |
Crankset parts and sizes | 30/42/52 TeethTruvativ Elita GXP |
Gear shift levers | SRAM X.7 |
Rear gear set | 11 - 32 Teeth9-speed |
Burley Django Fork System Data
Derailleur (Front) | Clamp-onShimano FD-R443 |
Derailleur (Rear) | SRAM X.9 |
Fork material | 4130 chromoly c |
Fork type | Burley |
Other Specs of Burley Django
Component group sets | Recumbent Mix |
Available colors | - Concord Purple- Firebird Red |
Weight | Unspecified |
Pedals details | Wellgo LU-A9 |
Rear shock absorber | Not Available |
Saddle seat | Burley Vinyl Seat Bottom |
Seat post extension | Not Available |
Burley Django picture
Django bike comparison
Burley Django

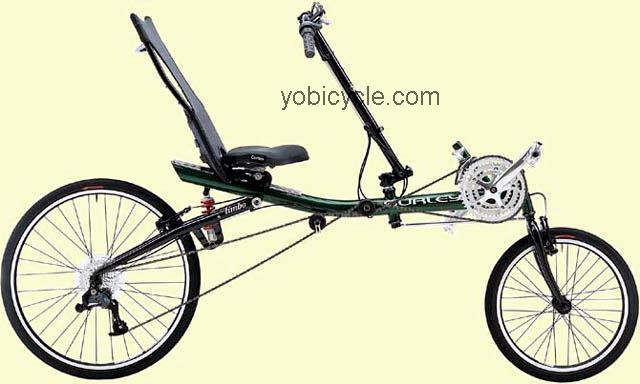

Burley Limbo
Burley Django
Lightning Stealth
Burley Django
ReBike ReBike 2600 SE
Burley Django
ReBike 2600 LE

Burley Django Burley Limbo
Burley Django Lightning Stealth
Burley Django ReBike ReBike 2600 SE
Burley Django ReBike 2600 LE
Burley Django bike review
Burley produced the Django bike in 2006 and can be classified as a Recumbent bicycle, this exact model costs in american market arround $1,399.00.Django bike is available in many sizes such as Sm/Md and Md/Lg .
Burley Recumbent Django can be found in a few colors, among these colors Concord Purple and Firebird Red .
This bike is equiped with Front: 20 x 1.50" Kenda Kwest tires and DT Swiss stainless steel spoke wheel while the rims are manufactured by Weinmann Zac 19, 32-hole. Burley equiped this exact model with Avid BB-5 disc front/Avid BB-5 disc rear brakes, Avid FR-5 levers braking system and Front: Shimano HB-M475 disc, Rear: Shimano FH-M475 disc hubs.
To guarantee the comfiest ride Burley used SupaLite 4130 chromoly material for the frame. Burley OC bar high strength material is used on the handlebar of this Django to ensure the perfect handling while the stems are made of Burley Design Megadjust.
For the smoothest biking experience Truvativ Elita GXP, 30/42/52 teeth is used on this bicycle linked to KMC Z9200 chain that is easily replaceable as stated by Burley, the whole system is connected to a high reliability SRAM X.7 gear shift levers.
