Research Dynamics COYOTE AFS 400 1998 VS Jamis DAKAR XC PRO 2003 specs comparison
Research Dynamics Coyote AFS 400
General InfosModel | Coyote AFS 400 |
Manufacturer | Research Dynamics |
Year of production | 1998 |
Current price | Check price Here ==> |
Color choice | - grey-Flat blue |
Sizes | - 17 (inches)- 19 (inches)- 21 (inches) |
Sizes | - 17 (inches)- 19 (inches)- 21 (inches) |
Wheels And Breaking System
Bike front tire | 26 X 1.95 (inches) Maxxis Gluteus |
Bike rear tire | Not Available |
Bike wheel size | 26 (inches) Wheels |
Brakeset type | Tektro RBP-378A LeversShimano Alivio V-brake Brakes |
Hubs for disc brakes | Shimano Alivio |
Rims manufacturer | 32-holeAlex Daig |
Spoke nipples type | Brass Nipples |
Spoke wheel | 2.0 (millimeters) Straight GaugeShuhn Lih Stainless Steel |
Frame and Body Specs
Frame materials | 7005 aluminum c |
Frame type | TIG-welded |
Handlebar construction | Kalloy |
Handlebar extender | Tranz-X |
Handlebar stem details | Tranz-X Jo-349 |
Headset size | 1 1/8 (inches) Aheadset Kontak ST-2 |
Gearing Specifications
Bicycle chain | 1/2 X 3/32 (inches)KMC IG-51 |
Bottom bracket shell width | 68 (millimeters) English |
Bottom bracket type | 110 (millimeters) SpindleShimano BB-LP26 |
Crankset parts and sizes | 22/32/42 TeethShimano STX-RC |
Gear shift levers | Grip Shift ESP 700 |
Rear gear set | 11 - 28 Teeth8-speed |
Research Dynamics Coyote AFS 400 Fork System Data
Derailleur (Front) | Bottom-pull and clamp-on 31.8 (millimeters)Shimano Deore XT Top-swing |
Derailleur (Rear) | Grip Shift ESP 7.0 |
Fork material | Unicrown CrownAluminum and chromoly |
Fork type | RST 381R |
Other Specs of Research Dynamics Coyote AFS 400
Component group sets | Shimano STX-RC |
Pedals details | Wellgo LU-954A |
Rear shock absorber | 2.5 (inches) TravelDyna-mount |
Saddle seat | Velo Crossbow |
Seat post extension | 31.6 (millimeters) DiameterKalloy SP-263 |

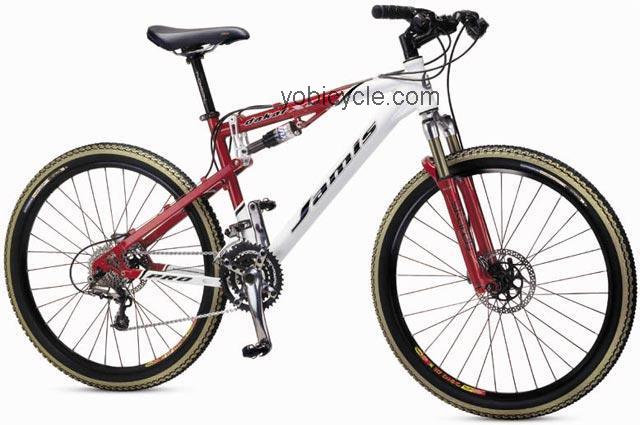

Jamis Dakar XC Pro
General InfosModel | Dakar XC Pro |
Manufacturer | Jamis |
Year of production | 2003 |
Current price | Check price Here ==> |
Color choice | -Gloss White and Candy Red |
Sizes | - 13 (inches)- 15 (inches)- 17 (inches)- 19 (inches)- 21 (inches) |
Wheels And Breaking System
Bike front tire | 26 X 2.00 (inches) Hutchinson Python Gold Elite |
Bike rear tire | Not Available |
Bike wheel size | 26 (inches) Wheels |
Brakeset type | Shimano XTR Dual Control STI LeversShimano XTR Disc Brake Brakes |
Hubs for disc brakes | Shimano XTR Disc |
Rims manufacturer | 32-holeMavic X317 Disc |
Spoke nipples type | Brass Nipples |
Spoke wheel | 14ga. Straight GaugeWTB Stainless Steel |
Frame and Body Specs
Frame materials | 7005 aluminum c |
Frame type | TIG-welded |
Handlebar construction | Answer ProTaper XC |
Handlebar extender | Optional |
Handlebar stem details | Thomson Elite |
Headset size | 1 1/8 (inches) Zero Stack Threadless Cane Creek ZS-2 |
Gearing Specifications
Bicycle chain | 1/2 X 3/32 (inches)Shimano CN-7701 |
Bottom bracket shell width | 68 (millimeters) English |
Bottom bracket type | Shimano XTR Integral |
Crankset parts and sizes | 22/32/44 TeethShimano XTR M960 |
Gear shift levers | Shimano XTR STI Dual Control |
Rear gear set | 12 - 34 Teeth9-speed |
Jamis Dakar XC Pro Fork System Data
Derailleur (Front) | Top-pull and clamp-on 31.8 (millimeters)Shimano XTR |
Derailleur (Rear) | Shimano XTR SGS Rapid Rise |
Fork material | Single CrownAluminum and magnesium |
Fork type | 80 (millimeters) TravelAnswer Manitou Skareb Super |
Other Specs of Jamis Dakar XC Pro
Component group sets | Mountain Mix |
Pedals details | Time ATAC Classic |
Rear shock absorber | 90 (millimeters) TravelFox Float RL |
Saddle seat | Chrome-moly RailsFi'zi:k Plateau |
Seat post extension | 27.2 (millimeters) DiameterThomson Elite |
