Cannondale CAAD8 105 5 2015 Technical specs and features
Brand | Cannondale |
Model | CAAD8 105 5 |
First production | 2015 |
Bike category | Road |
Bike sub-category | Road Double |
Bike Pricing | Check price Here ==> |
Parts And Accessories | Cannondale CAAD8 105 5 Parts |
Available Sizes | - 17 (inches) / 44 (cm)- 19 (inches) / 48 (cm)- 20 (inches) / 51 (cm)- 21 (inches) / 54 (cm)- 22 (inches) / 56 (cm)- 23 (inches) / 58 (cm) |
Wheels And Breaking System
Bike front tire | 700X23CSCHWALBE LUGANO |
Bike rear tire | Not Available |
Bike wheel size | 700c |
Brakeset type | Shimano BR-R561 |
Hubs for disc brakes | SHIMANO R501 |
Rims manufacturer | 32-holeMaddux RS 3.0 Speed |
Spoke nipples type | Not Available |
Spoke wheel | SHIMANO R501 |
Frame and Body Specifications
Frame materials | Aluminum |
Frame type | BB30 OPTIMIZED 6061 ALLOY SAVECAAD8 |
Handlebar construction | Cannondale C3 Compact |
Handlebar extender | Not Available |
Handlebar stem details | 31.8 (millimeters) 6 DegCannondale C3 |
Headset size | 25 (millimeters) Top CapTange Seiki Integrated |
Gearing Specs
Bicycle chain | KMC X10 10 SPEED |
Bottom bracket shell width | Not Available |
Bottom bracket type | FSA BB30 |
Crankset parts and sizes | 50/34TFSA Gossamer Compact BB30 |
Gear shift levers | SHIMANO 105 5700 |
Rear gear set | 12-28Shimano Tiagra 4600 |
Cannondale CAAD8 105 5 Fork System Data
Derailleur (Front) | SHIMANO 105 5700 |
Derailleur (Rear) | SHIMANO 105 5701 SS |
Fork material | Carbon Fiber and Aluminum |
Fork type | 1-1/8 (inches) CARBON BLADESCANNONDALE ULTRA |
Other Specs of Cannondale CAAD8 105 5
Component group sets | Shimano 105 Mix |
Available colors | - Green- Black |
Weight | Not Available |
Pedals details | WELLGO |
Rear shock absorber | Not Available |
Saddle seat | Cannondale Stage Ergo With Steel Rails |
Seat post extension | 27.2 (millimeters) X 300 (millimeters) AlloyCannondale C3 |

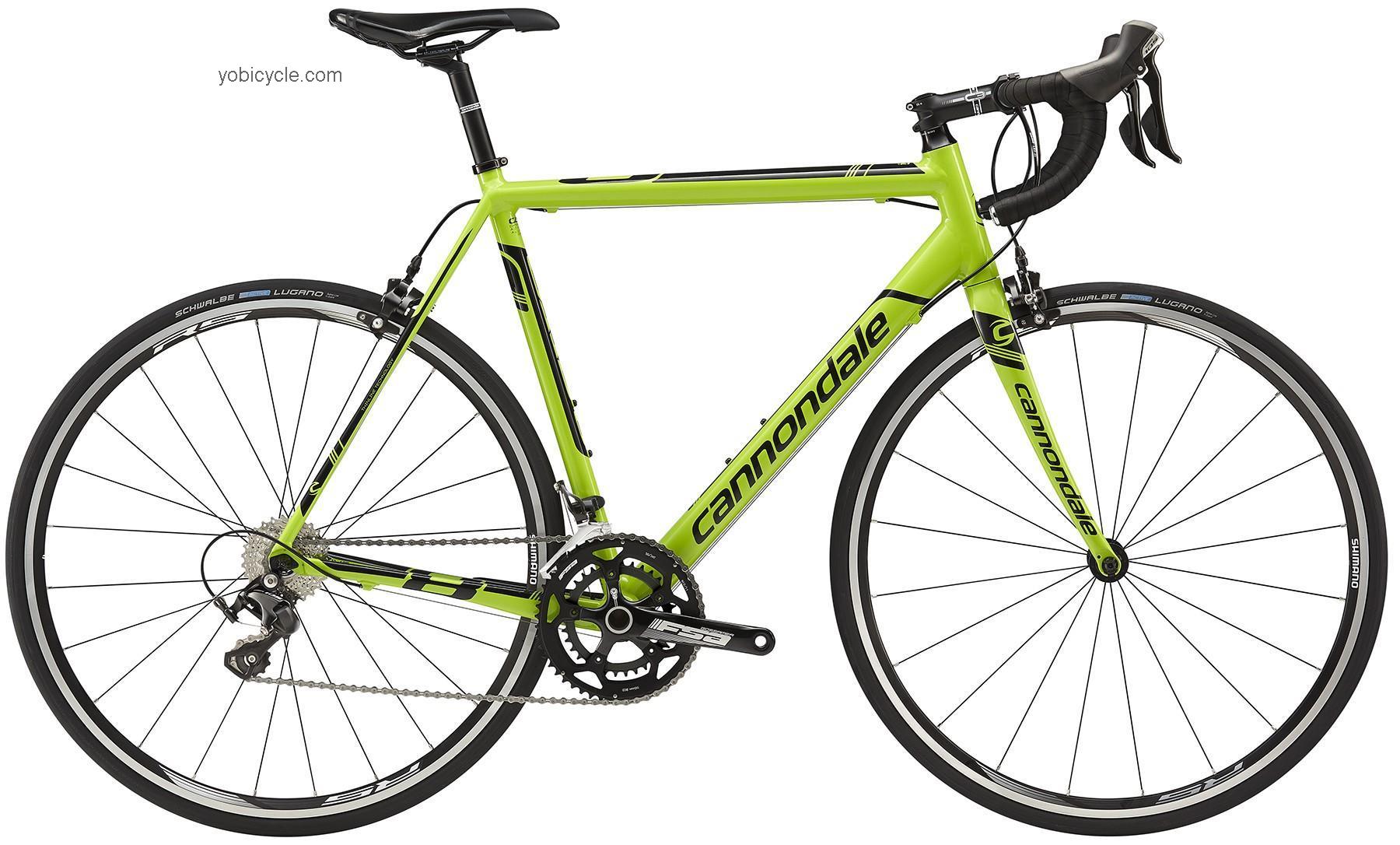

Cannondale CAAD8 105 5 picture
CAAD8 105 5 bike comparison
Cannondale CAAD8 105 5
Cannondale CAAD10 5 105
Cannondale CAAD8 105 5
Trek Domane 4.0 Disc
Cannondale CAAD8 105 5
Scott Contessa CR1 Comp
Cannondale CAAD8 105 5
Fuji Altamira 2.3


Cannondale CAAD8 105 5 Cannondale CAAD10 5 105


Cannondale CAAD8 105 5 Trek Domane 4.0 Disc


Cannondale CAAD8 105 5 Scott Contessa CR1 Comp


Cannondale CAAD8 105 5 Fuji Altamira 2.3
Cannondale CAAD8 105 5 bike review
Cannondale produced the CAAD8 105 5 bike in 2015 and can be classified as a Road bicycle, this exact model costs in american market arround $1410 USD.CAAD8 105 5 bike is available in many sizes such as 44 (centimeters), 48 (centimeters), 51 (centimeters), 54 (centimeters), 56 (centimeters) and 58cm (centimeters).
Cannondale Road CAAD8 105 5 can be found in a few colors, among these colors Green and Black .
This bike is equiped with SCHWALBE LUGANO tires and SHIMANO R501 spoke wheel while the rims are manufactured by Maddux RS 3.0 Speed, 32-hole. Cannondale equiped this exact model with Shimano BR-R561 braking system and SHIMANO R501 hubs.
To guarantee the comfiest ride Cannondale used Aluminum material for the frame. Cannondale C3 Compact high strength material is used on the handlebar of this CAAD8 105 5 to ensure the perfect handling while the stems are made of Cannondale C3, 31.8mm, 6 deg.
For the smoothest biking experience FSA Gossamer Compact BB30, 50/34T is used on this bicycle linked to KMC X10 10 SPEED chain that is easily replaceable as stated by Cannondale, the whole system is connected to a high reliability SHIMANO 105 5700 gear shift levers.
