Kestrel Evoke Dura Ace 2005 Technical specs and features
| Brand | Kestrel |
| Model | Evoke Dura Ace |
| First production | 2005 |
| Bike category | Road |
| Bike sub-category | Road Race & Triathlon |
| Bike Pricing | Check price Here ==> |
| Parts And Accessories | Kestrel Evoke Dura Ace Parts |
| Available Sizes | - 19 (inches) / 47 (cm) - 20 (inches) / 50 (cm) - 20 (inches) / 52 (cm) - 21 (inches) / 54 (cm) - 22 (inches) / 56 (cm) - 23 (inches) / 59 (cm) - 24 (inches) / 62 (cm) |
Wheels And Breaking System
| Bike front tire | Rear: 700 X 23c Michelin Pro Race2 Front: 700 X 23c Michelin Pro2 Race |
| Bike rear tire | Not Available |
| Bike wheel size | 700c Wheels |
| Brakeset type | Shimano Dura-Ace STI Dual Control Levers Shimano Dura-Ace Dual Pivot Brakes |
| Hubs for disc brakes | Velomax |
| Rims manufacturer | 24-hole and 28-hole Velomax Orion II |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 14/16/14ga. Double-butted Stainless Steel |
Frame and Body Specifications
| Frame materials | Carbon Fiber Composite |
| Frame type | Monocoque |
| Handlebar construction | Kestrel EMS Pro Carbon |
| Handlebar extender | Not Available |
| Handlebar stem details | ITM Millenium Carbon Super Ove |
| Headset size | 1 1/8 (inches) Integrated |
Gearing Specs
| Bicycle chain | 1/2 X 3/32 (inches) Shimano CN-7800 |
| Bottom bracket shell width | 68 (millimeters) English |
| Bottom bracket type | Shimano Dura-Ace |
| Crankset parts and sizes | 39/53 Teeth Shimano Dura-Ace |
| Gear shift levers | Shimano Dura-Ace STI Dual Control |
| Rear gear set | 10-speed |
Kestrel Evoke Dura Ace Fork System Data
| Derailleur (Front) | Braze-on Shimano Dura-Ace |
| Derailleur (Rear) | Shimano Dura-Ace SS |
| Fork material | Aero Crown Carbon Fiber Composite With Alloy Steerer |
| Fork type | Kestrel Evoke |
Other Specs of Kestrel Evoke Dura Ace
| Component group sets | Shimano Dura-Ace |
| Available colors | - Red Weave - Metallic Black and Silver |
| Weight | Unspecified |
| Pedals details | Not Available |
| Rear shock absorber | Not Available |
| Saddle seat | Not Available |
| Seat post extension | 32.4 (millimeters) Diameter |

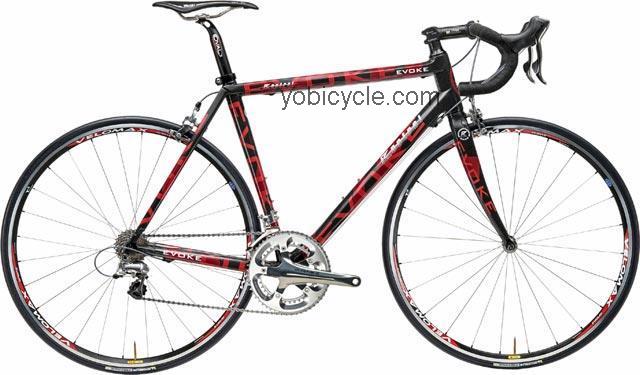

Kestrel Evoke Dura Ace picture
Evoke Dura Ace bike comparison
Kestrel Evoke Dura Ace Mondonico Elos (08)
Kestrel Evoke Dura Ace Felt F1
Kestrel Evoke Dura Ace Masi Speciale
Kestrel Evoke Dura Ace LeMond Zurich Triple
Kestrel Evoke Dura Ace bike review
Kestrel produced the Evoke Dura Ace bike in 2005 and can be classified as a Road bicycle.
Evoke Dura Ace bike is available in many sizes such as 47cm (centimeters), 50cm (centimeters), 52cm (centimeters), 54cm (centimeters), 56cm (centimeters), 59cm (centimeters) and 62cm (centimeters).
Kestrel Road Evoke Dura Ace can be found in a few colors, among these colors Red Weave and Metallic Black and Silver .
This bike is equiped with Front: 700 x 23c Michelin Pro2 Race tires and Stainless steel spoke wheel while the rims are manufactured by Velomax Orion II, 24-hole/28-hole. Kestrel equiped this exact model with Shimano Dura-Ace Dual Pivot brakes, Shimano Dura-Ace STI Dual Control levers braking system and Velomax hubs.
To guarantee the comfiest ride Kestrel used Carbon fiber composite material for the frame. Kestrel EMS Pro carbon high strength material is used on the handlebar of this Evoke Dura Ace to ensure the perfect handling while the stems are made of ITM Millenium Carbon Super Ove.
For the smoothest biking experience Shimano Dura-Ace, 39/53 teeth is used on this bicycle linked to Shimano CN-7800 chain that is easily replaceable as stated by Kestrel, the whole system is connected to a high reliability Shimano Dura-Ace STI Dual Control gear shift levers.
