Schwinn XS SUPER STOCK CRUISER 3 1997 VS Redline PROLINE PITBOSS 2008 specs comparison
Schwinn XS Super Stock Cruiser 3
General Infos| Model | XS Super Stock Cruiser 3 |
| Manufacturer | Schwinn |
| Year of production | 1997 |
| Current price | Check price Here ==> |
| Color choice |
-Chrome-plated |
| Sizes |
- Pro |
| Sizes |
- Pro |
Wheels And Breaking System
| Bike front tire | Rear: 24 X 1.75 (inches) Comp III Style Front: 24 X 2.125 (inches) Comp III Style |
| Bike rear tire | Not Available |
| Bike wheel size | 24 (inches) Wheels |
| Brakeset type | Dia-Compe Levers Front and aluminum Cantilever Rear Brakes |
| Hubs for disc brakes | XS Aluminum Nutted |
| Rims manufacturer | 36-hole Aluminum |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 2.0 (millimeters) Straight Gauge Steel |
Frame and Body Specs
| Frame materials | 4130 Chromoly Main Triangle and hi-tensile Steel Rear Stays |
| Frame type | TIG-welded |
| Handlebar construction | XS Pro Steel |
| Handlebar extender | Not Available |
| Handlebar stem details | XS Aluminum |
| Headset size | 1 1/8 (inches) Threadless |
Gearing Specifications
| Bicycle chain | 1/2 X 1/8 (inches) KMC 410 |
| Bottom bracket shell width | 68 (millimeters) Threadless |
| Bottom bracket type | One Piece |
| Crankset parts and sizes | 44 Teeth XS 1-piece Chromoly |
| Gear shift levers | Not Available |
| Rear gear set | 16 Teeth 1-speed |
Schwinn XS Super Stock Cruiser 3 Fork System Data
| Derailleur (Front) | Not Available |
| Derailleur (Rear) | Not Available |
| Fork material | Unicrown Crown 4130 Chromoly |
| Fork type | Schwinn |
Other Specs of Schwinn XS Super Stock Cruiser 3
| Component group sets | Not Available |
| Pedals details | Aluminum XS Platform |
| Rear shock absorber | Not Available |
| Saddle seat | XS |
| Seat post extension | XS Aluminum Micro-adjust |

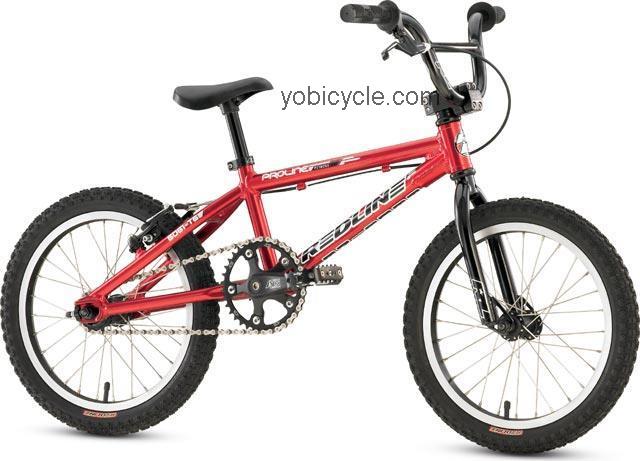

Redline Proline Pitboss
General Infos| Model | Proline Pitboss |
| Manufacturer | Redline |
| Year of production | 2008 |
| Current price | Check price Here ==> |
| Color choice |
-Red |
| Sizes |
- Not available |
Wheels And Breaking System
| Bike front tire | 16 X 1.75 (inches) CST Comp III |
| Bike rear tire | Not Available |
| Bike wheel size | 16 (inches) Wheels |
| Brakeset type | Tektro 317A Rear Levers Tektro BX1V V-Type Rear Brakes |
| Hubs for disc brakes | Redline Aluminum |
| Rims manufacturer | Alex C-1000 |
| Spoke nipples type | Not Available |
| Spoke wheel | Stainless Steel |
Frame and Body Specs
| Frame materials | 6061 T6 Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | Redline Aluminum |
| Handlebar extender | Optional |
| Handlebar stem details | Redline Proline Mini |
| Headset size | VP Threadless |
Gearing Specifications
| Bicycle chain | KMC Z30 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | VP Euro Cartridge |
| Crankset parts and sizes | Ac MiniHoleShot 36t Teeth AC MiniLE 3-Piece |
| Gear shift levers | Not Available |
| Rear gear set | 16 Teeth 1-speed |
Redline Proline Pitboss Fork System Data
| Derailleur (Front) | Not Available |
| Derailleur (Rear) | Not Available |
| Fork material | Unicrown Crown Cromo Blades And Steerer |
| Fork type | Redline Standard |
Other Specs of Redline Proline Pitboss
| Component group sets | BMX |
| Pedals details | Redline Jr. Aluminum |
| Rear shock absorber | Not Available |
| Saddle seat | Redline Microline Mini |
| Seat post extension | 22.2 (millimeters) Diameter Integrated Aluminum Post |
