Scott RACING JR. 20 2006 VS HH Racing Group PISTA 24 2003 specs comparison
Scott Racing Jr. 20
General Infos| Model | Racing Jr. 20 |
| Manufacturer | Scott |
| Year of production | 2006 |
| Current price | Check price Here ==> |
| Color choice | -Not found |
| Sizes | - Not available |
| Sizes | - Not available |
Wheels And Breaking System
| Bike front tire | 20 X 2.00 (inches) Kenda K-829 |
| Bike rear tire | Not Available |
| Bike wheel size | 20 (inches) Wheels |
| Brakeset type | Tektro 324A-TS LeversLee Chi 209 P Brakes |
| Hubs for disc brakes | FM-11 Bolt On |
| Rims manufacturer | 36-holeAlex Y-2000 |
| Spoke nipples type | Not Available |
| Spoke wheel | Straight GaugeChun Nan UCP |
Frame and Body Specs
| Frame materials | 6061 T6 Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | Juvenile Flat |
| Handlebar extender | Not Available |
| Handlebar stem details | HL-TDS-C41-8 |
| Headset size | 1 (inches) Threadless VP A73 |
Gearing Specifications
| Bicycle chain | Not Available |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Chin Haur CH-46 |
| Crankset parts and sizes | 32/42 TeethLasco Double |
| Gear shift levers | Shimano Revo 6-speed |
| Rear gear set | 14 - 28 Teeth6-speed |
Scott Racing Jr. 20 Fork System Data
| Derailleur (Front) | Shimano Tourney TY-22 |
| Derailleur (Rear) | Shimano Alivio |
| Fork material | Single CrownAluminum and steel |
| Fork type | 40 (millimeters) TravelSpinner Grind 2 |
Other Specs of Scott Racing Jr. 20
| Component group sets | Juvenile Mix |
| Pedals details | VP 570 BMX-type |
| Rear shock absorber | Not Available |
| Saddle seat | Juvenile |
| Seat post extension | Lee Chi SP-214 |

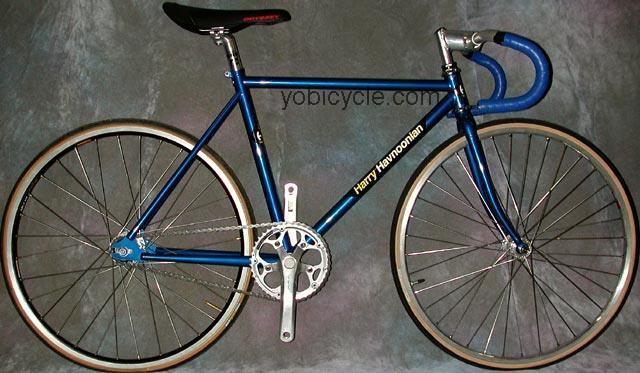

HH Racing Group Pista 24
General Infos| Model | Pista 24 |
| Manufacturer | HH Racing Group |
| Year of production | 2003 |
| Current price | Check price Here ==> |
| Color choice | - Candy Blue- Candy Red- White-Berry |
| Sizes | - 24 (inches) |
Wheels And Breaking System
| Bike front tire | 24 X 1 1/8 (inches) Panaracer |
| Bike rear tire | Not Available |
| Bike wheel size | 24 (inches) Wheels |
| Brakeset type | Not Available |
| Hubs for disc brakes | Suzue Aluminum |
| Rims manufacturer | 32-holeSun Rims ME14A |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 14ga. Straight GaugeDT Stainless Steel |
Frame and Body Specs
| Frame materials | 4130Chromoly |
| Frame type | TIG-welded |
| Handlebar construction | Nitto Drop |
| Handlebar extender | Not Available |
| Handlebar stem details | Aluminum |
| Headset size | 1 (inches) Threaded Aluminum |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches)KMC Z50 |
| Bottom bracket shell width | 68 (millimeters) English |
| Bottom bracket type | 113 (millimeters) SpindleShimano BB-UN52 |
| Crankset parts and sizes | 46 TeethHH Custom |
| Gear shift levers | Not Available |
| Rear gear set | 15 Teeth1-speed |
HH Racing Group Pista 24 Fork System Data
| Derailleur (Front) | Not Available |
| Derailleur (Rear) | Not Available |
| Fork material | Sloping CrownReynolds 531 |
| Fork type | HH Custom Track |
Other Specs of HH Racing Group Pista 24
| Component group sets | Track Mix |
| Pedals details | Optional |
| Rear shock absorber | Not Available |
| Saddle seat | Selle Italia Nitrox |
| Seat post extension | 26.8 (millimeters) DiameterAluminum Micro-adjust |
