Scott REFLEX 20 2007 VS Univega CB S8.3 1994 specs comparison

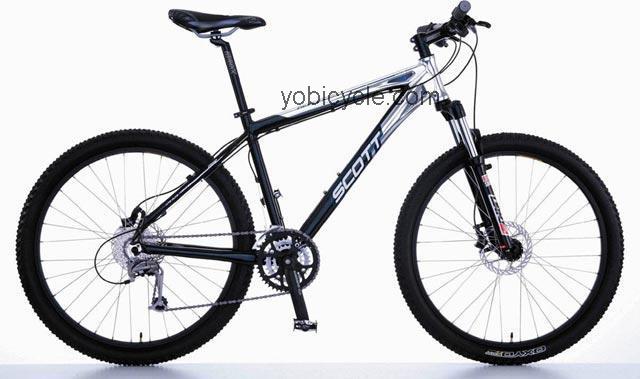

Scott Reflex 20
General Infos| Model | Reflex 20 |
| Manufacturer | Scott |
| Year of production | 2007 |
| Current price | Check price Here ==> |
| Color choice |
-Not found |
| Sizes |
- Not available |
| Sizes |
- Not available |
Wheels And Breaking System
| Bike front tire | 26 X 2.00 (inches) Scott OXYD |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Avid Juicy 3 Levers Avid Juicy 3 Brakes |
| Hubs for disc brakes | Rear: Shimano FH-M475-L Front: Scott Disc Team |
| Rims manufacturer | Alex DM-18 |
| Spoke nipples type | Not Available |
| Spoke wheel | 14ga. Stainless Steel |
Frame and Body Specs
| Frame materials | 6061 Alloy c |
| Frame type | TIG-welded |
| Handlebar construction | Aricle YC-210-601 |
| Handlebar extender | Optional |
| Handlebar stem details | Kalloy AS-159 |
| Headset size | Ritchey Logic OE |
Gearing Specifications
| Bicycle chain | Shimano CN-HG53 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Shimano BB-UN26 |
| Crankset parts and sizes | 22/32/44 Teeth Shimano FC-M442 |
| Gear shift levers | Shimano Deore Rapidfire |
| Rear gear set | 11 - 32 Teeth 9-speed |
Scott Reflex 20 Fork System Data
| Derailleur (Front) | Shimano FD-M510 |
| Derailleur (Rear) | Shimano Deore LX |
| Fork material | Single Crown Aluminum and magnesium |
| Fork type | 100 (millimeters) Travel RockShox Dart 2 |
Other Specs of Scott Reflex 20
| Component group sets | Shimano Deore |
| Pedals details | Wellgo LU-998-S |
| Rear shock absorber | Not Available |
| Saddle seat | SCT-10 SL Reflex 07 |
| Seat post extension | Kalloy SP-341 |
Univega CB S8.3
General Infos| Model | CB S8.3 |
| Manufacturer | Univega |
| Year of production | 1994 |
| Current price | Check price Here ==> |
| Color choice |
-Not found |
| Sizes |
- 15.5 (inches) - 17.5 (inches) - 19.5 (inches) |
Wheels And Breaking System
| Bike front tire | Rear: 26 X 2.10 (inches) Ritchey Climb Max Front: 26 X 2.10 (inches) Ritchey Mad Max |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Levers Shimano STX Brakes |
| Hubs for disc brakes | Shimano STX |
| Rims manufacturer | 32-hole Mavic 230 |
| Spoke nipples type | Not Available |
| Spoke wheel | Not Available |
Frame and Body Specs
| Frame materials | Carbon and Kevlar Fiber |
| Frame type | Lugged Carbon Fiber |
| Handlebar construction | Concept XS Alloy |
| Handlebar extender | Not Available |
| Handlebar stem details | Sonny II |
| Headset size | Not Available |
Gearing Specifications
| Bicycle chain | Sedis |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Not Available |
| Crankset parts and sizes | 22/32/42 Teeth Shimano Deore LX |
| Gear shift levers | Shimano Deore LX Rapidfire Plus With Optical Gear Display |
| Rear gear set | 11 - 28 Teeth 7-speed |
Univega CB S8.3 Fork System Data
| Derailleur (Front) | Shimano STX |
| Derailleur (Rear) | Shimano Deore LX |
| Fork material | Not Available |
| Fork type | Univega Concept Linkage |
Other Specs of Univega CB S8.3
| Component group sets | Shimano Deore LX |
| Pedals details | WellGo LU-934 Alloy |
| Rear shock absorber | Not Available |
| Saddle seat | Vetta SP |
| Seat post extension | Concept Tricor Alloy |
