Scott SPORTSTER 25 SOLUTION 2011 VS Raleigh C40 2003 specs comparison

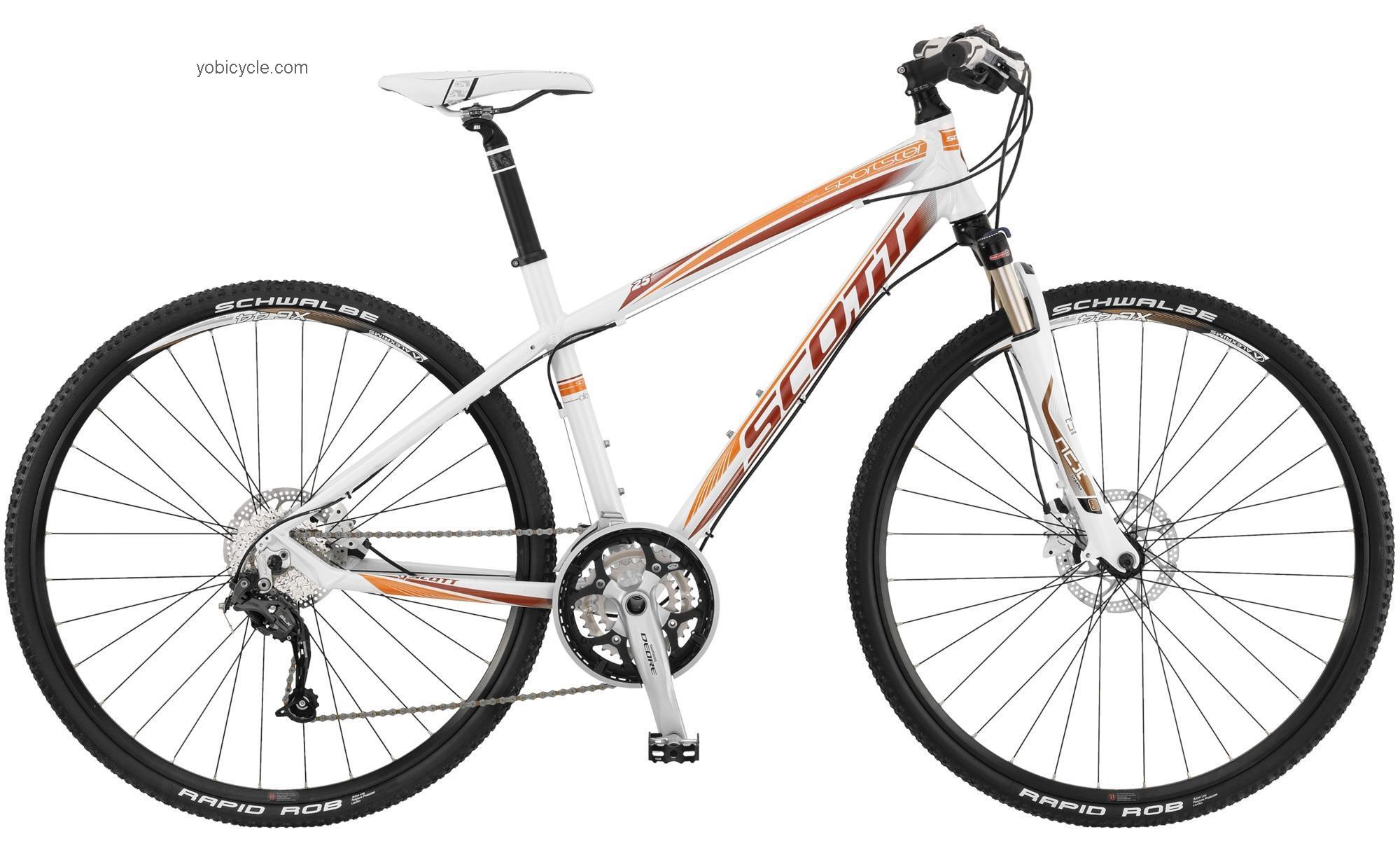

Scott Sportster 25 Solution

General Infos

Model	Sportster 25 Solution
Manufacturer	Scott
Year of production	2011
Current price	Check price Here ==>
Color choice	-White and copper
Sizes	- Small - Medium - Large - Extra large
Sizes	- Small - Medium - Large - Extra large

Wheels And Breaking System

Bike front tire	700 X 35c Schwalbe Rapid Rob
Bike rear tire	Not Available
Bike wheel size	700c Wheels
Brakeset type	Shimano BL-M445 Levers Shimano BR-M445 Hydraulic Disc Brakes
Hubs for disc brakes	Rear: Shimano FH-RM65 Centerlock Front: Scott Comp Disc
Rims manufacturer	32-hole Alex XC-44 Disc
Spoke nipples type	Not Available
Spoke wheel	14ga. Stainless

Frame and Body Specs

Frame materials	6061 Alloy Double Butted
Frame type	Alloy
Handlebar construction	15° Bend 9° Bend and Solution: 610 (millimeters) Scott Sportster OS 580 (millimeters)
Handlebar extender	Optional
Handlebar stem details	Scott Comp
Headset size	Ritchey OE Logic Zero

Gearing Specifications

Bicycle chain	Shimano CN-HG53
Bottom bracket shell width	68 (millimeters)
Bottom bracket type	Shimano Cartridge
Crankset parts and sizes	48/36/26t Teeth Shimano Deore FC-M590
Gear shift levers	Shimano Deore SL-M590 Rapid Fire
Rear gear set	11 - 32 Teeth

Scott Sportster 25 Solution Fork System Data

Derailleur (Front)	Clamp On Shimano Deore FC-M590
Derailleur (Rear)	Shimano SLX
Fork material	Not Available
Fork type	63 (millimeters) Travel Suntour NCX-D LO-A

Other Specs of Scott Sportster 25 Solution

Component group sets	Shimano Mix
Pedals details	Wellgo C 128
Rear shock absorber	Not Available
Saddle seat	Scott Sportster
Seat post extension	31.6 (millimeters) Diameter Scott Comp

Raleigh C40

General Infos

Model	C40
Manufacturer	Raleigh
Year of production	2003
Current price	Check price Here ==>
Color choice	- Blue -Black
Sizes	- 15 (inches) - 17 (inches) - 19 (inches) - 21 (inches) - 23 (inches) - womens 16 (inches) - womens 19 (inches)

Wheels And Breaking System

Bike front tire	700 X 38c Kenda K-830
Bike rear tire	Not Available
Bike wheel size	700c Wheels
Brakeset type	Tektro TS384A Levers Tektro 835A Linear Pull Brakes
Hubs for disc brakes	Q and R Rear: Shimano FH-RM40 Front: Aluminum
Rims manufacturer	36-hole Weinmann Zac 20
Spoke nipples type	Brass Nipples
Spoke wheel	14ga. Straight Gauge Stainless Steel

Frame and Body Specs

Frame materials	6061 T6 Aluminum
Frame type	TIG-welded
Handlebar construction	1 (inches) Rise Steel
Handlebar extender	Optional
Handlebar stem details	Adjustable Aluminum
Headset size	1 1/8 (inches) Threaded Steel

Gearing Specifications

Bicycle chain	1/2 X 3/32 (inches) KMC Z82
Bottom bracket shell width	Not Available
Bottom bracket type	Sealed Cartridge
Crankset parts and sizes	28/38/48 Teeth Shimano FC-C203
Gear shift levers	Shimano Revo RS41A
Rear gear set	11 - 34 Teeth 8-speed

Raleigh C40 Fork System Data

Derailleur (Front)	Dual-pull and clamp-on 31.8 (millimeters) Shimano C202
Derailleur (Rear)	Shimano Acera
Fork material	Single Crown Aluminum
Fork type	50 (millimeters) Travel SR Suntour CR870

Other Specs of Raleigh C40

Component group sets	Hybrid Mix
Pedals details	Avenir Comfort Dual Density
Rear shock absorber	Not Available
Saddle seat	Avenir Cross Coil Spring
Seat post extension	27.2 (millimeters) Diameter Suspension Aluminum
