Trek LIQUID 20 2003 VS Jamis DAKAR 2005 specs comparison

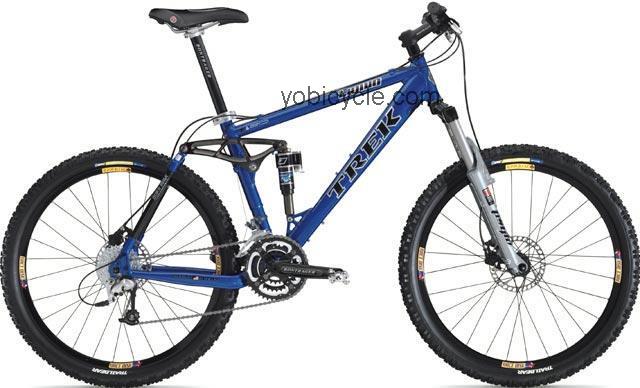

Trek Liquid 20
General Infos| Model | Liquid 20 |
| Manufacturer | Trek |
| Year of production | 2003 |
| Current price | Check price Here ==> |
| Color choice |
-Baja Blue |
| Sizes |
- 15.5 (inches) - 17.5 (inches) - 19.5 (inches) - 21.5 (inches) |
| Sizes |
- 15.5 (inches) - 17.5 (inches) - 19.5 (inches) - 21.5 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 2.25 (inches) IRC Trailbear |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Hayes Hydraulic Levers Hayes HMX-9 Hydraulic Disc Brakes |
| Hubs for disc brakes | Bontrager Race Disc |
| Rims manufacturer | 28-hole Bontrager Race Disc |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 14ga. Straight Gauge Stainless Steel |
Frame and Body Specs
| Frame materials | Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | Bontrager Crowbar Sport |
| Handlebar extender | Optional |
| Handlebar stem details | Bontrager Select |
| Headset size | 1 1/8 (inches) Threadless Aheadset |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Not Available |
| Crankset parts and sizes | 22/32/44 Teeth Bontrager Race |
| Gear shift levers | Shimano Deore LX RapidFire |
| Rear gear set | 11 - 34 Teeth 9-speed |
Trek Liquid 20 Fork System Data
| Derailleur (Front) | Shimano Deore LX |
| Derailleur (Rear) | Shimano Deore XT SGS |
| Fork material | Single Crown Aluminum and magnesium |
| Fork type | 80-125 (millimeters) Travel Rock Shox Psylo XC |
Other Specs of Trek Liquid 20
| Component group sets | Mountain Mix |
| Pedals details | Shimano PD-M515 SPD |
| Rear shock absorber | 5.0 (inches) Travel Fox Talas R |
| Saddle seat | Bontrager FS 2000 |
| Seat post extension | Bontrager Select |
Jamis Dakar
General Infos| Model | Dakar |
| Manufacturer | Jamis |
| Year of production | 2005 |
| Current price | Check price Here ==> |
| Color choice |
-Ano Blue |
| Sizes |
- 13 (inches) - 15 (inches) - 17 (inches) - 19 (inches) - 21 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 2.00 (inches) Hutchinson Scorpion |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Avid FR-5 Levers Tektro Linear-pull Brakes |
| Hubs for disc brakes | Formula Disc |
| Rims manufacturer | 32-hole Weinmann Zac 2000 |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 14ga. Straight Gauge WTB Stainless Steel |
Frame and Body Specs
| Frame materials | 7005 aluminum c |
| Frame type | TIG-welded |
| Handlebar construction | Aluminum Riser |
| Handlebar extender | Optional |
| Handlebar stem details | Aluminum Threadless |
| Headset size | 1 1/8 (inches) Zero Stack Threadless Aheadset STS |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) KMC IG-31 |
| Bottom bracket shell width | 68 (millimeters) English |
| Bottom bracket type | 113 (millimeters) Spindle TruVativ Power Spline |
| Crankset parts and sizes | 22/32/44 Teeth TruVativ Isoflow |
| Gear shift levers | Shimano Alivio |
| Rear gear set | 11 - 32 Teeth 8-speed |
Jamis Dakar Fork System Data
| Derailleur (Front) | Top-pull and clamp-on 31.8 (millimeters) Shimano Alivio |
| Derailleur (Rear) | Shimano Deore |
| Fork material | Single Crown Aluminum and magnesium |
| Fork type | 100 (millimeters) Travel Manitou Splice Comp |
Other Specs of Jamis Dakar
| Component group sets | Mountain Mix |
| Pedals details | Wellgo WPD-823 Clipless |
| Rear shock absorber | 90 (millimeters) Travel Fox Vanilla |
| Saddle seat | WTB Laser V Comp |
| Seat post extension | 27.2 (millimeters) Diameter Aluminum Micro-adjust |
