Trek TOP FUEL 9.8 2008 VS Dean DUKE XC (05) 1997 specs comparison

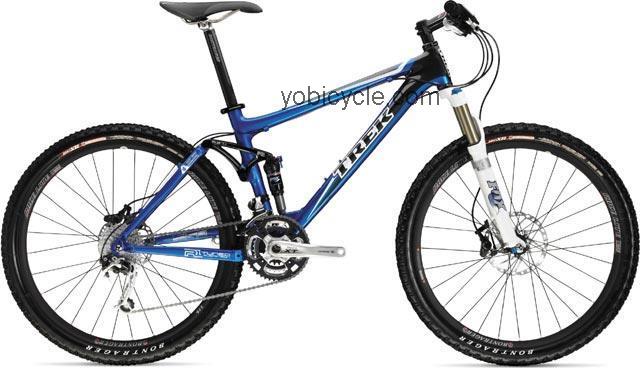

Trek Top Fuel 9.8
General Infos| Model | Top Fuel 9.8 |
| Manufacturer | Trek |
| Year of production | 2008 |
| Current price | Check price Here ==> |
| Color choice |
-Onyx Carbon and Carrera Blue |
| Sizes |
- 15.5 (inches) - 17.5 (inches) - 19.5 (inches) - 21.5 (inches) |
| Sizes |
- 15.5 (inches) - 17.5 (inches) - 19.5 (inches) - 21.5 (inches) |
Wheels And Breaking System
| Bike front tire | Rear: 26 X 2.25 (inches) Bontrager Jones XR Front: 26 X 2.20 (inches) Bontrager Jones XR |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Shimano XT Levers Shimano XT Disc With 185 (millimeters) Rotor Front and Shimano XT Disc With 160 (millimeters) Rotor Rear Brakes |
| Hubs for disc brakes | Bontrager Race Lite |
| Rims manufacturer | Bontrager Race Lite |
| Spoke nipples type | Not Available |
| Spoke wheel | Not Available |
Frame and Body Specs
| Frame materials | OCLV Black Carbon |
| Frame type | Monocoque |
| Handlebar construction | Bontrager Race X Lite Carbon |
| Handlebar extender | Optional |
| Handlebar stem details | Bontrager Race X Lite OS |
| Headset size | Cane Creek S-3 |
Gearing Specifications
| Bicycle chain | Not Available |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Not Available |
| Crankset parts and sizes | 22/32/44 Teeth Shimano XT |
| Gear shift levers | Shimano XT Rapid Fire |
| Rear gear set | 11 - 32 Teeth 9-speed |
Trek Top Fuel 9.8 Fork System Data
| Derailleur (Front) | Shimano XT |
| Derailleur (Rear) | Shimano XT Shadow |
| Fork material | Single Crown Aluminum and magnesium |
| Fork type | 100 (millimeters) Travel Fox 32 F100RLC |
Other Specs of Trek Top Fuel 9.8
| Component group sets | Not Available |
| Pedals details | Not Available |
| Rear shock absorber | 90 (millimeters) Travel Fox Float RP23 |
| Saddle seat | Bontrager Race Lite |
| Seat post extension | Bontrager Race X Lite ACC |
Dean Duke XC (05)
General Infos| Model | Duke XC (05) |
| Manufacturer | Dean |
| Year of production | 1997 |
| Current price | Check price Here ==> |
| Color choice |
-Brushed |
| Sizes |
- Large - medium - small |
Wheels And Breaking System
| Bike front tire | 26 X 2.10 (inches) WTB VelociRaptor |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Shimano Deore LX Levers Shimano Deore LX V-Brake Brakes |
| Hubs for disc brakes | Rear: Shimano Deore LX Front: Shimano Deore LX Suspension |
| Rims manufacturer | 32-hole Mavic 238 |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 2.0 (millimeters) Double Butted Wheelsmith Stainless Steel |
Frame and Body Specs
| Frame materials | 3Al and 2.5V Titanium |
| Frame type | TIG-welded |
| Handlebar construction | Dean Aluminum |
| Handlebar extender | Optional |
| Handlebar stem details | Dean Aluminum |
| Headset size | 1 1/8 (inches) Threadless Dia-Compe Aheadset |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) Shimano CN-HG70 |
| Bottom bracket shell width | 68 (millimeters) English |
| Bottom bracket type | 107 (millimeters) Spindle Shimano BB-UN72 |
| Crankset parts and sizes | 22/32/42 Teeth Shimano Deore LX |
| Gear shift levers | Grip Shift SRT-800 X-Ray |
| Rear gear set | 11 - 28 Teeth 8-speed |
Dean Duke XC (05) Fork System Data
| Derailleur (Front) | Top-pull and clamp-on 35.0 (millimeters) Shimano Deore XT Top-swing |
| Derailleur (Rear) | Shimano Deore XT SGS |
| Fork material | Triple-clamp Crown Aluminum |
| Fork type | Answer Manitou SX |
Other Specs of Dean Duke XC (05)
| Component group sets | Shimano Deore XT and LX |
| Pedals details | Optional |
| Rear shock absorber | 1.25 (inches) Travel Stratos Strata |
| Saddle seat | Titanium Rails SDG 2000 Kevlar |
| Seat post extension | 27.2 (millimeters) Diameter Dean Aluminum |
