VooDoo CANZO AL XTR/ESP/SPYDER R 1999 VS Trek Y 3 1997 specs comparison

VooDoo Canzo AL XTR/ESP/Spyder R

General Infos

Model	Canzo AL XTR/ESP/Spyder R
Manufacturer	VooDoo
Year of production	1999
Current price	Check price Here ==>
Color choice	- Shaka Yellow -Polished with Black rear triangle
Sizes	- 14 (inches) - 16 (inches) - 17 (inches) - 18.5 (inches) - 19.5 (inches) - 21 (inches)
Sizes	- 14 (inches) - 16 (inches) - 17 (inches) - 18.5 (inches) - 19.5 (inches) - 21 (inches)

Wheels And Breaking System

Bike front tire	26 X 2.10 (inches) WTB VelociRaptor 44/50 Kevlar
Bike rear tire	Not Available
Bike wheel size	26 (inches) Wheels
Brakeset type	Shimano XTR Levers Shimano XTR V-Brake Brakes
Hubs for disc brakes	Shimano XTR
Rims manufacturer	32-hole Mavic X517
Spoke nipples type	Alloy Nipples
Spoke wheel	2.0 (millimeters) Double-butted Wheelsmith Stainless Steel

Frame and Body Specs

Frame materials	Easton ProGram Elite Double-butted
Frame type	TIG-welded
Handlebar construction	Titec PG Titanium
Handlebar extender	Optional
Handlebar stem details	Titec AL-PG
Headset size	1 1/8 (inches) Threadless WTB Grease Guard

Gearing Specifications

Bicycle chain	1/2 X 3/32 (inches) Shimano CN-7700
Bottom bracket shell width	68 (millimeters) English
Bottom bracket type	110 (millimeters) Spindle Shimano BB-M952
Crankset parts and sizes	24/34/46 Teeth Shimano XTR M952
Gear shift levers	SRAM ESP 9.0
Rear gear set	11 - 32 Teeth 9-speed

VooDoo Canzo AL XTR/ESP/Spyder R Fork System Data

Derailleur (Front)	Top-pull and clamp-on 28.6 (millimeters) Shimano XTR Top-swing
Derailleur (Rear)	SRAM ESP 9.0
Fork material	Triple-clamp Crown Aluminum and magnesium
Fork type	3.15 (inches) Travel Answer Manitou Spyder R

Other Specs of VooDoo Canzo AL XTR/ESP/Spyder R

Component group sets	Shimano XTR
Pedals details	Shimano PD-M747 SPD
Rear shock absorber	4.0 (inches) Travel Rock Shox Super Deluxe
Saddle seat	Koski Titanium and vinyl and kevlar
Seat post extension	27.2 (millimeters) Diameter Titec Aluminum

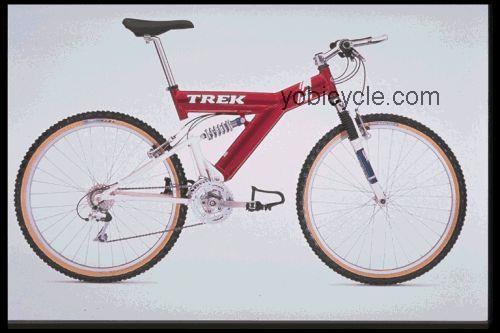

Trek Y 3

General Infos

Model	Y 3
Manufacturer	Trek
Year of production	1997
Current price	Check price Here ==>
Color choice	-Red and cream
Sizes	- Large - medium - small

Wheels And Breaking System

Bike front tire	Rear: 26 X 1.95 (inches) Tioga Psycho TT Kevlar Front: 26 X 1.95 (inches) Tioga Psycho K Kevlar
Bike rear tire	Not Available
Bike wheel size	26 (inches) Wheels
Brakeset type	Tektro RBP-376A Levers Shimano Deore LX V-Brake Brakes
Hubs for disc brakes	Rear: Shimano Alivio Front: System 1 Suspension
Rims manufacturer	32-hole Matrix Guru
Spoke nipples type	Brass Nipples
Spoke wheel	2.0 (millimeters) Straight Gauge DT Stainless Steel

Frame and Body Specs

Frame materials	6061 T6 Aluminum and True Temper Chromoly Swingarm
Frame type	TIG-welded
Handlebar construction	System 1
Handlebar extender	System 1
Handlebar stem details	System 2
Headset size	1 1/8 (inches) Threadless Tange-Seiki ST-E

Gearing Specifications

Bicycle chain	1/2 X 3/32 (inches) Shimano CN-IG31
Bottom bracket shell width	73 (millimeters) English
Bottom bracket type	113 (millimeters) Spindle Shimano BB-LP26
Crankset parts and sizes	24/34/42 Teeth Shimano Alivio
Gear shift levers	Grip Shift SRT-400i
Rear gear set	11 - 30 Teeth 7-speed

Trek Y 3 Fork System Data

Derailleur (Front)	Top-pull and clamp-on 35.0 (millimeters) Shimano Alivio Top-swing
Derailleur (Rear)	Shimano Alivio
Fork material	Triple-clamp Crown Magnesium
Fork type	Rock Shox Indy C

Other Specs of Trek Y 3

Component group sets	Shimano Deore LX and Alivio
Pedals details	System 1 With Clips & Straps
Rear shock absorber	1.75 (inches) Travel Fox Vanilla
Saddle seat	Trek
Seat post extension	27.2 (millimeters) Diameter System 1
