VooDoo ZOBOP (02) 1997 VS Iron Horse SGS TEAM 2003 specs comparison

VooDoo Zobop (02)

General Infos

Model	Zobop (02)
Manufacturer	VooDoo
Year of production	1997
Current price	Check price Here ==>
Color choice	-Red with black swingarm
Sizes	- 16 (inches) - 17.25 (inches) - 18.5 (inches) - 19.5 (inches)
Sizes	- 16 (inches) - 17.25 (inches) - 18.5 (inches) - 19.5 (inches)

Wheels And Breaking System

Bike front tire	Rear: 26 X 2.10 (inches) Ritchey Omega Bite Front: 26 X 2.10 (inches) Ritchey Alfa Bite
Bike rear tire	Not Available
Bike wheel size	26 (inches) Wheels
Brakeset type	Shimano Deore LX Levers Shimano Deore LX V-Brake Brakes
Hubs for disc brakes	Shimano STX
Rims manufacturer	32-hole Rear: Ritchey Rock 415 Front: Ritchey Rock 395
Spoke nipples type	Brass Nipples
Spoke wheel	2.0 (millimeters) Straight Gauge Wheelsmith Stainless Steel

Frame and Body Specs

Frame materials	Double-butted 7005 Aluminum
Frame type	TIG-welded
Handlebar construction	Titec Enduro
Handlebar extender	Optional
Handlebar stem details	Titec T-Slot Chromoly
Headset size	1 1/8 (inches) Threadless Dia-Compe Kontak Aheadset ST-2

Gearing Specifications

Bicycle chain	1/2 X 3/32 (inches) Shimano CN-IG31
Bottom bracket shell width	68 (millimeters) English
Bottom bracket type	Shimano BB-UN52
Crankset parts and sizes	22/32/42 Teeth Sugino Impel 500
Gear shift levers	Shimano STX RapidFire SL
Rear gear set	11 - 30 Teeth 8-speed

VooDoo Zobop (02) Fork System Data

Derailleur (Front)	Bottom-pull and bottom Bracket Mount Shimano STX Top-swing
Derailleur (Rear)	Shimano STX
Fork material	Triple-clamp Crown Magnesium
Fork type	Rock Shox Indy SL

Other Specs of VooDoo Zobop (02)

Component group sets	Shimano STX
Pedals details	Aluminum Cage With Clips & Straps
Rear shock absorber	3.75 (inches) Travel Rock Shox Super Deluxe
Saddle seat	Steel Rails WTB SST
Seat post extension	27.2 (millimeters) Diameter Titec Aluminum

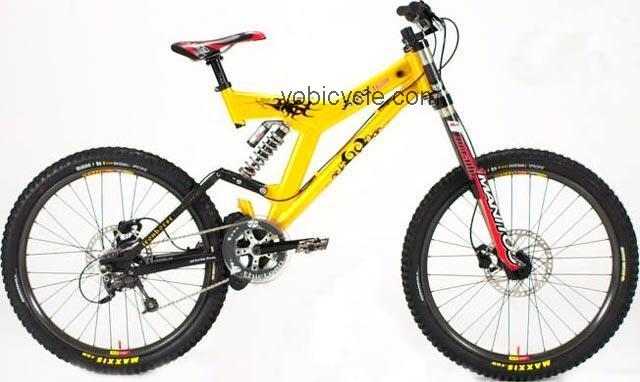

Iron Horse SGS Team

General Infos

Model	SGS Team
Manufacturer	Iron Horse
Year of production	2003
Current price	Check price Here ==>
Color choice	-Yellow
Sizes	- 17 (inches) - 19 (inches) - 21 (inches)

Wheels And Breaking System

Bike front tire	26 X 2.50 (inches) Maxxis Minion
Bike rear tire	Not Available
Bike wheel size	26 (inches) Wheels
Brakeset type	Hayes HFX Magnesium Hydraulic Levers Hayes HFX Magnesium Hydraulic Disc Brakes
Hubs for disc brakes	Rear: Ringle Lawwill Front: Ringle Abbah SOS DH
Rims manufacturer	Mavic D321 Disc
Spoke nipples type	Brass Nipples
Spoke wheel	14ga. Straight Gauge Sha-Dar Stainless Steel

Frame and Body Specs

Frame materials	Not Available
Frame type	Not Available
Handlebar construction	Easton EA70
Handlebar extender	Not Available
Handlebar stem details	Answer Manitou Dorado
Headset size	1 1/8 (inches) Threadless Cane Creek Double XC Conversion

Gearing Specifications

Bicycle chain	1/2 X 3/32 (inches) SRAM PC-69
Bottom bracket shell width	Not Available
Bottom bracket type	Profile Sealed Bearing
Crankset parts and sizes	42 Teeth Profile 3-piece
Gear shift levers	Shimano Deore XT RapidFire
Rear gear set	9-speed

Iron Horse SGS Team Fork System Data

Derailleur (Front)	Chain Retention Device
Derailleur (Rear)	Shimano XTR GS
Fork material	Dual Crown Carbon Fiber and aluminum
Fork type	180 (millimeters) Travel Answer Manitou Dorado

Other Specs of Iron Horse SGS Team

Component group sets	Downhill Mix
Pedals details	Shimano PD-M646 SPD
Rear shock absorber	Progressive 5th Element
Saddle seat	THE Connex
Seat post extension	26.8 (millimeters) Diameter Thomson Elite
