Cignal Ozark 20 2000 Technical specs and features
| Brand | Cignal |
| Model | Ozark 20 |
| First production | 2000 |
| Bike category | Youth |
| Bike sub-category | Youth Mountain Bike Without Suspension |
| Bike Pricing | Check price Here ==> |
| Parts And Accessories | Cignal Ozark 20 Parts |
| Available Sizes | - Boys 11 (inches)- girls 9.5 (inches) |
Wheels And Breaking System
| Bike front tire | 20 X 1.95 (inches) Innova IA-2004 |
| Bike rear tire | Not Available |
| Bike wheel size | 20 (inches) Wheels |
| Brakeset type | APSE 405AD LeversAPSE 116AD Brakes |
| Hubs for disc brakes | NuttedSteel |
| Rims manufacturer | 36-holeAlloy |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 1.8 (millimeters) Straight GaugeStainless Steel |
Frame and Body Specifications
| Frame materials | Hi-tensile Steel |
| Frame type | Brazed and welded |
| Handlebar construction | Hsin Lung Steel |
| Handlebar extender | Optional |
| Handlebar stem details | Hsin Lung Steel |
| Headset size | 1 (inches) Victor VP-H732 |
Gearing Specs
| Bicycle chain | 1/2 X 3/32 (inches)KMC Z-51 |
| Bottom bracket shell width | 68 (millimeters) English |
| Bottom bracket type | 118.5 (millimeters) SpindleVictor VPB-32 |
| Crankset parts and sizes | 40 TeethProwheel PW-S106C |
| Gear shift levers | SRAM MRX |
| Rear gear set | 14 - 28 Teeth6-speed |
Cignal Ozark 20 Fork System Data
| Derailleur (Front) | Not Available |
| Derailleur (Rear) | Shimano Tourney TY-15 |
| Fork material | Oversize Unicrown CrownHi-tensile Steel |
| Fork type | Cignal |
Other Specs of Cignal Ozark 20
| Component group sets | Not Available |
| Available colors | - Candy Red- Metallic Periwinkle- Mint- Starbeam Blue |
| Weight | Not Available |
| Pedals details | Victor VP-872N |
| Rear shock absorber | Not Available |
| Saddle seat | Cignal Jr. ATB |
| Seat post extension | 25.4 (millimeters) DiameterHsin Lung Pillar |
Cignal Ozark 20 picture
Ozark 20 bike comparison
Cignal Ozark 20
Schwinn Frontier 24
Cignal Ozark 20
Schwinn Solution 24
Cignal Ozark 20
Haro Vector V-Bone
Cignal Ozark 20

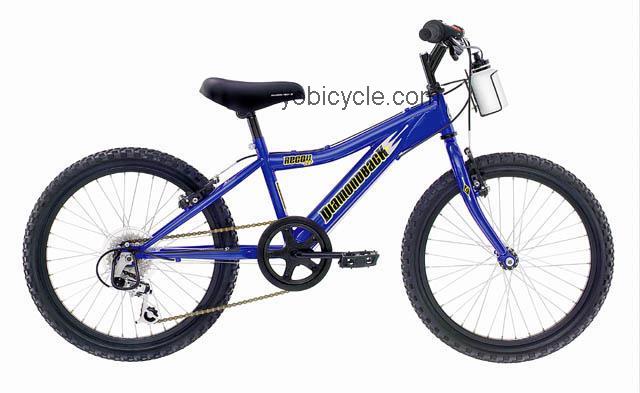

Diamondback Recoil 20
Cignal Ozark 20 Schwinn Frontier 24
Cignal Ozark 20 Schwinn Solution 24
Cignal Ozark 20 Haro Vector V-Bone
Cignal Ozark 20 Diamondback Recoil 20
Cignal Ozark 20 bike review
Cignal produced the Ozark 20 bike in 2000 and can be classified as a Youth bicycle, this exact model costs in american market arround $170.00.Ozark 20 bike is available in many sizes such as Boys 11 (inches) and girls 9.5 (inches).
Cignal Youth Ozark 20 can be found in a few colors, among these colors Candy Red, Metallic Periwinkle, Mint and Starbeam Blue .
This bike is equiped with 20 x 1.95" Innova IA-2004 tires and Stainless steel spoke wheel while the rims are manufactured by Alloy, 36-hole. Cignal equiped this exact model with APSE 116AD brakes, APSE 405AD levers braking system and Steel, nutted hubs.
To guarantee the comfiest ride Cignal used Hi-tensile steel material for the frame. Hsin Lung steel high strength material is used on the handlebar of this Ozark 20 to ensure the perfect handling while the stems are made of Hsin Lung steel.
For the smoothest biking experience Prowheel PW-S106C, 40 teeth is used on this bicycle linked to KMC Z-51 chain that is easily replaceable as stated by Cignal, the whole system is connected to a high reliability SRAM MRX gear shift levers.
