Cignal Ozark 2001 Technical specs and features
Brand | Cignal |
Model | Ozark |
First production | 2001 |
Bike category | Youth |
Bike sub-category | Youth Mountain Bike Without Suspension |
Bike Pricing | Check price Here ==> |
Parts And Accessories | Cignal Ozark Parts |
Available Sizes | - Boys 13.5 (inches) |
Wheels And Breaking System
Bike front tire | 24 X 1.95 (inches) Innova IA-2005 |
Bike rear tire | Not Available |
Bike wheel size | 24 (inches) Wheels |
Brakeset type | Chang Star Aluminum LeversChang Star Linear-pull Brakes |
Hubs for disc brakes | NuttedSteel |
Rims manufacturer | 36-holeAlloy |
Spoke nipples type | Brass Nipples |
Spoke wheel | 1.8 (millimeters) Straight GaugeShun Jiu Stainless Steel |
Frame and Body Specifications
Frame materials | Hi-tensile Steel |
Frame type | Brazed and welded |
Handlebar construction | Hsin Lung Steel |
Handlebar extender | Optional |
Handlebar stem details | Hsin Lung Steel |
Headset size | 1 (inches) Victor VP-H732 |
Gearing Specs
Bicycle chain | 1/2 X 3/32 (inches)KMC Z-51 |
Bottom bracket shell width | 68 (millimeters) English |
Bottom bracket type | 117.5 (millimeters) SpindleVictor VPB-32 |
Crankset parts and sizes | 24/34/42 TeethProWheel Aluminum |
Gear shift levers | SunRace Twist Shift |
Rear gear set | 13 - 28 Teeth7-speed |
Cignal Ozark Fork System Data
Derailleur (Front) | Bottom-pull and clamp-on 28.6 (millimeters)SR XR-05 |
Derailleur (Rear) | Shimano Tourney TY-22 |
Fork material | Unicrown CrownHi-tensile Steel |
Fork type | Spinner |
Other Specs of Cignal Ozark
Component group sets | Juvenile Mix |
Available colors | - Black- Purple- Silver- White |
Weight | Not Available |
Pedals details | Victor VP-872N |
Rear shock absorber | Not Available |
Saddle seat | Cignal Jr ATB |
Seat post extension | 25.4 (millimeters) DiameterHsin Lung Pillar |
Cignal Ozark picture
Ozark bike comparison
Cignal Ozark
Specialized Hotrock 24 ST
Cignal Ozark
Schwinn Frontier 24
Cignal Ozark
Research Dynamics Coyote Team Extreme
Cignal Ozark

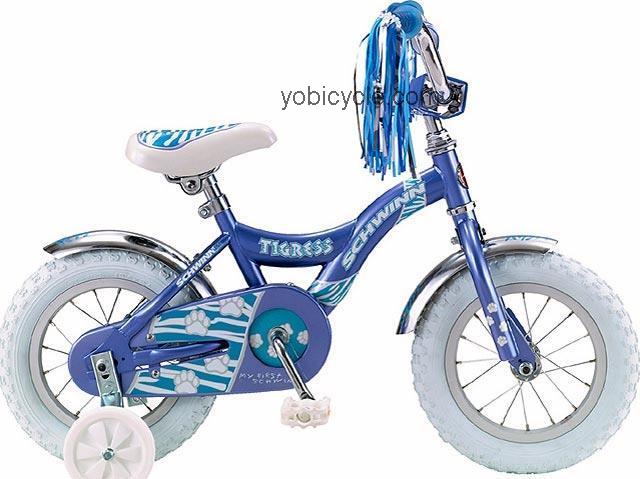

Schwinn Tigress
Cignal Ozark Specialized Hotrock 24 ST

Cignal Ozark Schwinn Frontier 24
Cignal Ozark Research Dynamics Coyote Team Extreme

Cignal Ozark Schwinn Tigress
Cignal Ozark bike review
Cignal produced the Ozark bike in 2001 and can be classified as a Youth bicycle, this exact model costs in american market arround $190.00.Cignal Youth Ozark can be found in a few colors, among these colors Black, Purple, Silver and White .
This bike is equiped with 24 x 1.95" Innova IA-2005 tires and Shun Jiu stainless steel spoke wheel while the rims are manufactured by Alloy, 36-hole. Cignal equiped this exact model with Chang Star linear-pull brakes, Chang Star aluminum levers braking system and Steel, nutted hubs.
To guarantee the comfiest ride Cignal used Hi-tensile steel material for the frame. Hsin Lung steel high strength material is used on the handlebar of this Ozark to ensure the perfect handling while the stems are made of Hsin Lung steel.
For the smoothest biking experience ProWheel aluminum, 24/34/42 teeth is used on this bicycle linked to KMC Z-51 chain that is easily replaceable as stated by Cignal, the whole system is connected to a high reliability SunRace Twist Shift gear shift levers.
