Jamis Ranger SX 24 2004 Technical specs and features
| Brand | Jamis |
| Model | Ranger SX 24 |
| First production | 2004 |
| Bike category | Youth |
| Bike sub-category | Youth Mountain Bike With Suspension |
| Bike Pricing | Check price Here ==> |
| Parts And Accessories | Jamis Ranger SX 24 Parts |
| Available Sizes | - Boys 13.5 (inches) |
Wheels And Breaking System
| Bike front tire | 24 X 1.95 (inches) Cheng Shin |
| Bike rear tire | Not Available |
| Bike wheel size | 24 (inches) Wheels |
| Brakeset type | Aluminum Linear-pull LeversAluminum Linear-pull Brakes |
| Hubs for disc brakes | Aluminum |
| Rims manufacturer | 32-holeAluminum |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 15ga. Straight GaugeStainless Steel |
Frame and Body Specifications
| Frame materials | 7005 aluminum c |
| Frame type | TIG-welded |
| Handlebar construction | Aluminum MTB |
| Handlebar extender | Optional |
| Handlebar stem details | Aluminum |
| Headset size | 1 1/8 (inches) Threadless Aheadset |
Gearing Specs
| Bicycle chain | 1/2 X 3/32 (inches)Shimano CN-HG72 |
| Bottom bracket shell width | 68 (millimeters) English |
| Bottom bracket type | 113 (millimeters) SpindleSemi-cartridge |
| Crankset parts and sizes | 22/32/44 TeethAluminum |
| Gear shift levers | SRAM MRX |
| Rear gear set | 11 - 32 Teeth7-speed |
Jamis Ranger SX 24 Fork System Data
| Derailleur (Front) | Top-pull and clamp-on 31.8 (millimeters)Shimano Tourney TY-30 |
| Derailleur (Rear) | Shimano TX-30 |
| Fork material | Single CrownAluminum and magnesium |
| Fork type | 50 (millimeters) TravelSR Suntour M-2000 |
Other Specs of Jamis Ranger SX 24
| Component group sets | Mountain Mix |
| Available colors | - Black- Red |
| Weight | Not Available |
| Pedals details | Resin MTB |
| Rear shock absorber | Not Available |
| Saddle seat | Jamis ATB |
| Seat post extension | 27.2 (millimeters) Diameter SuspensionAluminum |
Jamis Ranger SX 24 picture
Ranger SX 24 bike comparison
Jamis Ranger SX 24
Diamondback Octane 24
Jamis Ranger SX 24
Iron Horse Eliminator
Jamis Ranger SX 24
Gary Fisher Mt. Jam
Jamis Ranger SX 24

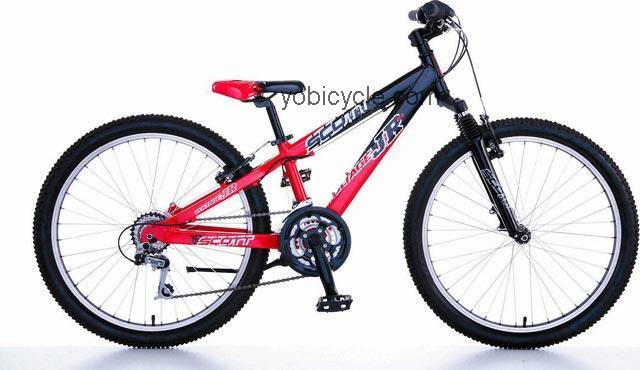

Scott Voltage JR 24
Jamis Ranger SX 24 Diamondback Octane 24
Jamis Ranger SX 24 Iron Horse Eliminator
Jamis Ranger SX 24 Gary Fisher Mt. Jam
Jamis Ranger SX 24 Scott Voltage JR 24
Jamis Ranger SX 24 bike review
Jamis produced the Ranger SX 24 bike in 2004 and can be classified as a Youth bicycle, this exact model costs in american market arround $219.95.Jamis Youth Ranger SX 24 can be found in a few colors, among these colors Black and Red .
This bike is equiped with 24 x 1.95" Cheng Shin tires and Stainless steel spoke wheel while the rims are manufactured by Aluminum, 32-hole. Jamis equiped this exact model with Aluminum linear-pull brakes, aluminum linear-pull levers braking system and Aluminum hubs.
To guarantee the comfiest ride Jamis used 7005 aluminum material for the frame. Aluminum MTB high strength material is used on the handlebar of this Ranger SX 24 to ensure the perfect handling while the stems are made of Aluminum.
For the smoothest biking experience Aluminum, 22/32/44 teeth is used on this bicycle linked to Shimano CN-HG72 chain that is easily replaceable as stated by Jamis, the whole system is connected to a high reliability SRAM MRX gear shift levers.
