Raleigh Lily 2010 Technical specs and features
| Brand | Raleigh |
| Model | Lily |
| First production | 2010 |
| Bike category | Youth |
| Bike sub-category | Youth Mountain Bike Without Suspension |
| Bike Pricing | Check price Here ==> |
| Parts And Accessories | Raleigh Lily Parts |
| Available Sizes | - 20 Girls (inches) |
Wheels And Breaking System
| Bike front tire | 20 (inches) MTB |
| Bike rear tire | Not Available |
| Bike wheel size | 20 (inches) Wheels |
| Brakeset type | Promax Jr. V-brake Levers ProMax Alloy V-Brake Brakes |
| Hubs for disc brakes | Rear: Steel Nutted Freewheel Front: Steel Nutted |
| Rims manufacturer | 36-hole and 32-hole Alloy R1000 |
| Spoke nipples type | Not Available |
| Spoke wheel | 14ga. |
Frame and Body Specifications
| Frame materials | Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | Jr. Riser 520x30 (millimeters) |
| Handlebar extender | Optional |
| Handlebar stem details | Alloy 4-bolt Quill |
| Headset size | 1 1/8 (inches) Threaded |
Gearing Specs
| Bicycle chain | KMC Z51 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | 10pc Loose Ball |
| Crankset parts and sizes | 40 Teeth Steel 5.5 (inches) |
| Gear shift levers | Shimano SL-RS31 Revo |
| Rear gear set | 14 - 28 Teeth 6-speed |
Raleigh Lily Fork System Data
| Derailleur (Front) | Not Available |
| Derailleur (Rear) | Shimano TZ-50 |
| Fork material | Single Crown Aluminum |
| Fork type | Not Available |
Other Specs of Raleigh Lily
| Component group sets | Mountain Mix |
| Available colors | - Pearl White |
| Weight | Not Available |
| Pedals details | Resin Platform |
| Rear shock absorber | Not Available |
| Saddle seat | Raleigh Jr. Mtn |
| Seat post extension | 27.2 (millimeters) Diameter Alloy Pillar |

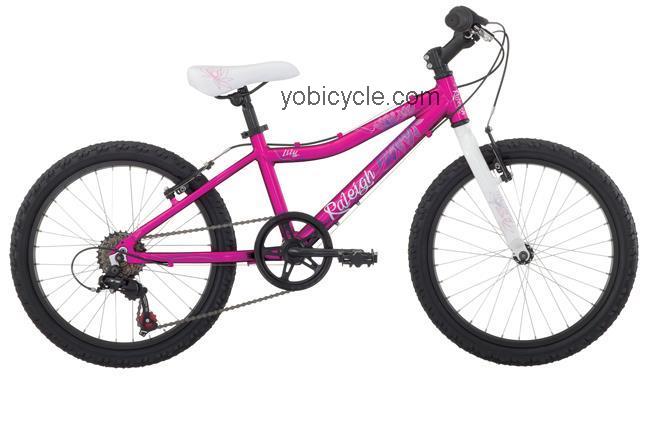

Raleigh Lily picture
Lily bike comparison
Raleigh Lily Trek Mt. Track 220 (02)
-1999-specs.jpg)
Raleigh Lily Mongoose Mt. Grizzly (01)
Raleigh Lily Specialized Hotrock 24
Raleigh Lily Schwinn Tigress
Raleigh Lily bike review
Raleigh produced the Lily bike in 2010 and can be classified as a Youth bicycle.
Raleigh Youth Lily can be found in a few colors, among these colors Pearl White .
This bike is equiped with 20" MTB tires and 14ga. spoke wheel while the rims are manufactured by Alloy R1000, 36-hole/32-hole. Raleigh equiped this exact model with ProMax Alloy V-Brake brakes, Promax Jr. V-brake levers braking system and Front: Steel Nutted, Rear: Steel Nutted Freewheel hubs.
To guarantee the comfiest ride Raleigh used Aluminum material for the frame. Jr. Riser 520x30mm high strength material is used on the handlebar of this Lily to ensure the perfect handling while the stems are made of Alloy 4-bolt Quill.
For the smoothest biking experience Steel 5.5", 40 teeth is used on this bicycle linked to KMC Z51 chain that is easily replaceable as stated by Raleigh, the whole system is connected to a high reliability Shimano SL-RS31 Revo gear shift levers.
